Product features
Reactor 3 E-XP1 Standard Tier polyurea proportioner package, 200 ft external heated hose, 10 kW
Part Number: EHR320

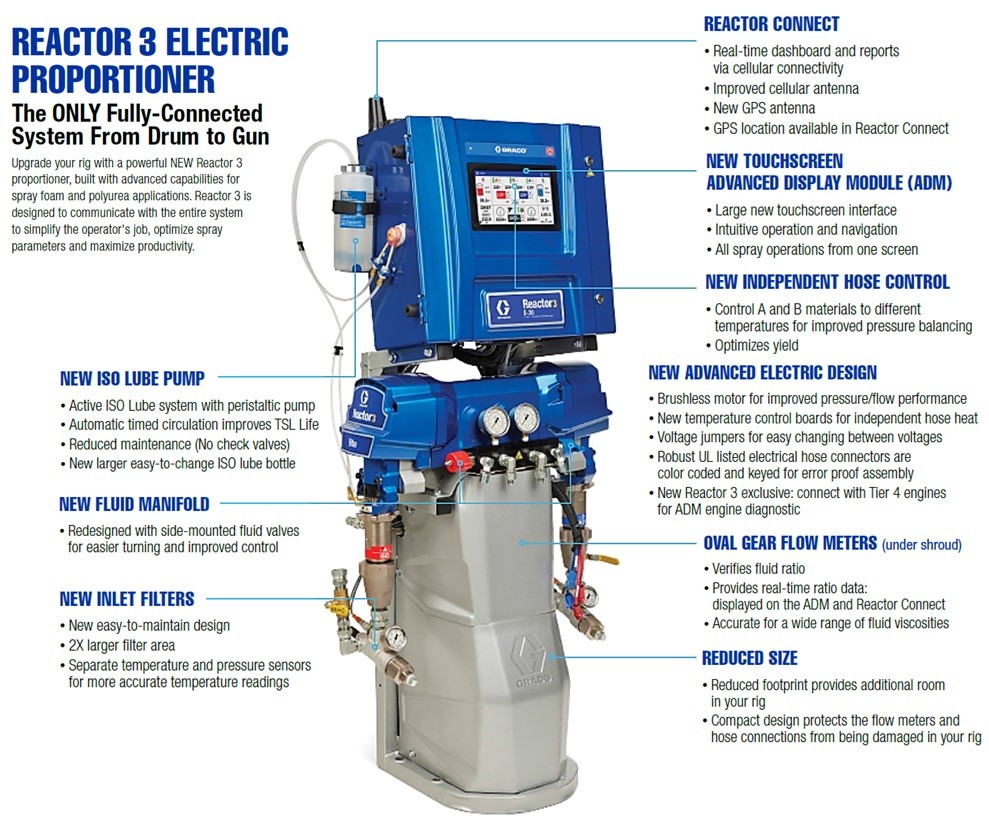

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications.
Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimise spray parameters and maximise productivity.
The E-XP1 is a polyurea system build for a customer focused on smaller jobs or for someone just entering the business; it is a great starter machine.
Due to the smaller heaters, the E-XP1 is also a good choice for contractors in temperate climates where larger heaters are not required.
Touchscreen advanced display module (ADM)
A large new touchscreen interface
Intuitive operation and navigation
All spray operations controllable from one screen
ISO lube pump
An active ISO lube system with a peristaltic pump
Automatically timed circulation improves TSL life
Reduced maintenance (no non-return valves)
A new larger, easy-to-change, ISO lube bottle
Independent hose control
Control A and B materials to different temperatures for improved pressure balancing
Optimises yield
Advanced electric design
A brushless motor for improved pressure/flow performance
New temperature control boards for independent hose heat
Voltage jumpers for easy changing between voltages
Robust UL listed electrical hose connectors are colour coded and keyed for error proof assembly
New Reactor 3 exclusive: connect with Tier 4 engines for ADM engine diagnostics
Reduced size
The reduced footprint provides additional room in your rig
The compact design protects the flow meters and hose connections from being damaged in your rig
Applications
· Roof Coatings
· Ship Building & Marine
· Bridge Protective Coatings
· Pipe and Tank Coating
· Water Tower Protective Coatings
· Wastewater Treatment
· Corrosion Control
· Offshore Rigs
· Waterproofing
· Roof and Wall Insulation
Product Parameter
| Technical Specifications | |
| Frequency (Hz) | 50/60 |
| Hose Heating Type | Externally heated |
| Maximum Flow Rate (L/min) | 3.8 |
| Maximum Fluid Temperature (°C) | 88 |
| Maximum Spray Pressure (MPa) | 20.7 |
| Maximum Spray Pressure (bar) | 207 |
| Maximum Spray Pressure (psi) | 3000 |
| Model | Reactor 3 |
| Power Rating (kW) | 10 |
| Product series | Standard |
| Series | E-XP1 |
| Transfer pumps | Transfer pumps |
| Type | Proportioner Package |
| Voltage (V) | 200-240 VAC, 1–ph, 200-240 VAC, 3–ph DELTA, 350-415 VAC, 3–ph WYE |
| Weight (kg) | 118 |
